Ip streaming sever hd sdi encoder

FOB Reference Price:Get Latest Price
$369.00 - $389.00 / Piece | 1 Piece/Pieces (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hunan, China
Brand Name:
kiloview
Model Number:
G1 ENCODER
Product name:
HD SDI Encoder
Input interface:
SDI(BNC*2)
Output interface:
IP(network)
Shell:
aluminum
Status:
in stock
SDI encoder size:
15*13*3.8(cm)
SDI encoder weight:
0.55KG
Power supply:
DC 12V, 1A
OEM ODM:
accept
Supply Ability
Supply Ability:
1000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
package by Carton with foam
Port
any port in China
Lead Time :
3days after payment recieved

G1 HD SDI Encoder is a HD video network encoding transmission product with high performance. KV-EC101A supports SD-SDI (270M) and HD-SDI (1.485G) digital video and audio input, decoding H.264 (High Profile/Main Profile/Baseline) for video and AAC or G.711 for audio.


G1  HD SDI Encoder supports SDI formats 525i (480i), 625i (576i), 720p, 1080i1080p (maximum 30Hz), supporting SDI embed audio or analog audio through external Line In (alternative).


G1 supports dual stream encoding, main stream high up to 1080p@30fps / 720p@60fps, sub stream encoding is up to 720x576@30fps. KV-EC101A video encoding rate is adjustable between 512Kbps and 20Mbps,AAC audio encoding rate is adjustable between 16Kbps and 256Kbps. Under encoding bit rate 2.5Mbps, it could truly restore video with 1920x1080 resolution rate, no obvious visual damage.


G1 has encoding delay less than 50ms. If cooperating with our KV-DC serial encoders, it could realize “encoding to decoding” delay less than 200ms in typical network environment. (The decoding delay of the third party equipment/software is related with specific product and technology.)


G1 HD SDI Encoder is easy to operate and could use only with electricity by default. Through simple Web operation, KV-EC101A could conduct a comprehensive configuration and management for the equipment. G1  supports many transmission protocol like RTP/RTSP, RTMP, HLS, MPEG-TS etc., also compatible with ONVIF 1.1/2.0 and can integrate with recent popular streaming media server( like Wowza/FMS/RED5), NVR and video management platform. Through cooperating with KV-DC serial encoder or with the help of KV-EC101A API programming interface, it could also realize remote RS485 pass-through and two-way voice intercom function.


G1  HD SDI Encoder provides open source SDK, supporting Windows/Linux/Unix cross-platform compiling which could realize equipment’s management, video playing, video and other functions.



HD SDI Encoder Features:

*Supports SD/HD-SDI interface and AES/EBU embedded audio
*Support analog audio (Line-in) input and analog audio output (Line-out);
*Support 1080p30/25/24/23.98,1080i60/59.94/50,720p60/59.94/50,525i,625i,etc., automatically identify input signal format, *no need manual operation;
*H.264 High Profile compressed technology, high image quality,high acoustic fidelity, encoding delay is lower than 50ms;
*Intelligent network controls delay, decoding delay is lower than 200 ms in typical network environment;
*Encoding rate is adjustable and image quality could be controlled;
*Support two-way audio talkback, RS-485 signalling passthrough;
*AAC-LC Hi-Fi audio encoding and G.711 audio encoding;
*Support main stream high up to 1080p@30fps / 720p@60fps, sub stream encoding is up to 720x576@30fps;
*Support RTP/RTSP transmission protocol;
*Support RTMP push protocol, compatible with streaming media server like Wowza/FMS/RED5;
*Support ONVIF 1.1/2.0, compatible with various NVR system;
*Support Pelco-D / Sony VISCA PTZ control;
* Web based management, online video preview;
* Provide SDK for second development.

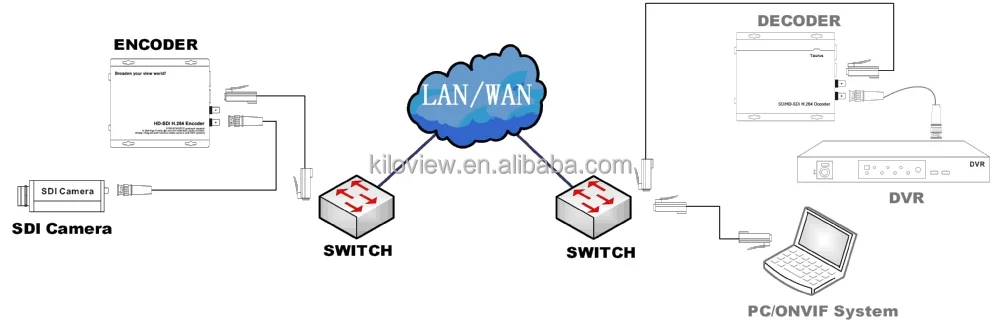

Application Notes:
HD SDI Encoder
Parameter:


Model No.

G1

Interface

Video input

1*BNC  SDI

Video looping Out

1*BNC  SDI

Analog audio input

1*3.5mm audio input

Analog audio output

1*3.5mm audio input

Alarm signal

1*

RS-485

1*

Network

1*RJ-45, Ethernet connecting

Power Supply

DC 12V, 1A

Signal

SDI signal amplitude

0.8Vp-p

SDI impedance

75 Ohm

SDI coupling type

AC

Loopback signal type

SD-SDI(270Mbps),HD-SDI(1.485Gbps)

Supported formats

1080p 30/29.97/25/24/23.98;

1080i 60/59.94/50;

720p 60/59.94/50/30/29.97/25/24/23.98;

525i(480i) / 625i(575i)

Encoding

Video encoding

H.264 high profile, support Slice encoding

Audio encoding

AAC-LC, G.711

Encoding delay

≤50ms

Video encoding bitrate

512Kbps ~ 20Mbps

Audio encoding bitrate

64Kbps

Transmission

Media transmission protocol

RTP/RTSP,RTMP,HLS,MPEG-TS Push,HTTP

Control transmission protocol

TCP

Cloud controlling protocol

Pelco-D / Sony VISCA

Network Management Protocol

HTTP,Onvif 1.1/2.0

Management

Management interface

Web

Remote management

Support

Firmware upgrading

Support

Operation environment

Operation Temperature

-10℃ ~ 70℃

Relative Humidity

20 ~90%RH(no-condensation)

Power dissipation

4W







Company Information

 kiloview officekiloview factory

Packaging & Shipping

delivery.JPGsdi encoder

Why choose us
  • Independent R&D,  HD losseless, uncompression and low delay
  • Excellence compatibility, best image quality and supporting wide signal formats.
  • SDI products that applied in broadcasting and TV fields represent technology, quality and performance. Through thoroughly tempered, it only pursuits of the reality of every  pixel color, up to and beyond standard of every signal index.
  • Professional technology to achieve broadcast grade quality.
  • Leading innovator and manufacture for HD video transmission technology and image processing technology
